CRN45A · Coil Nailers
Coil Nailers

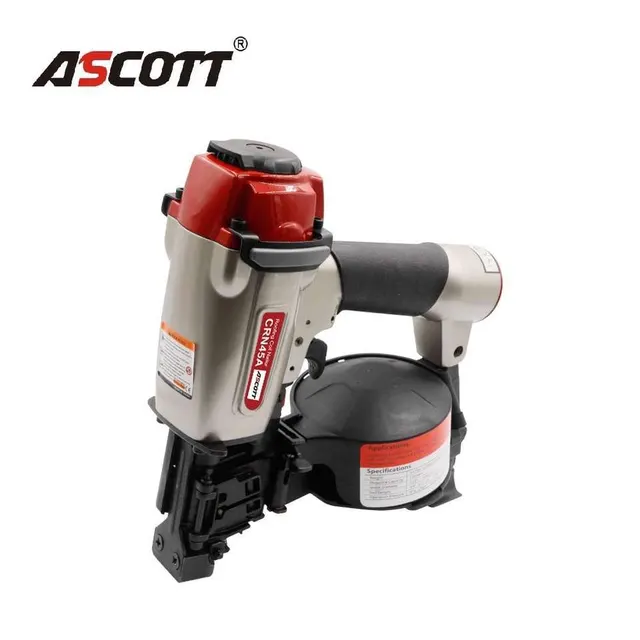

CRN45A Coil Nailer

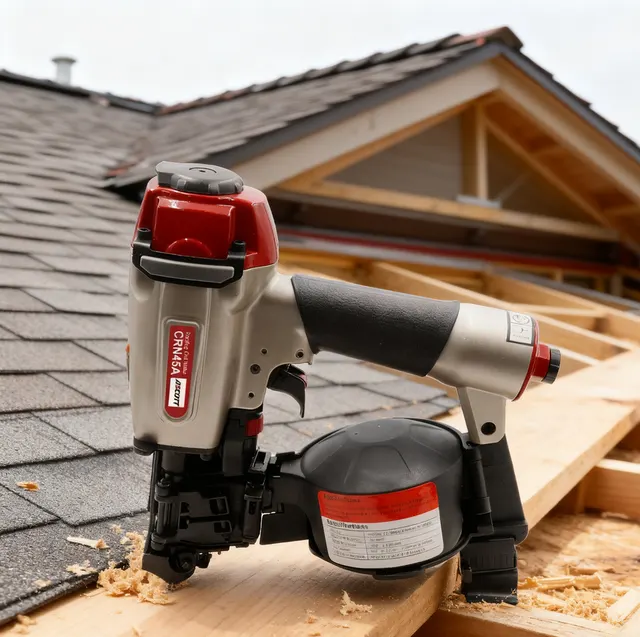

Roofing Coil Nailer for Asphalt Shingles and Lath Wire Fastening
MODELCRN45A
Weight2.58 kgs (5.67 lbs)
Dimensions313 x 116 x 271 mm
Load Capacity120 nails
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

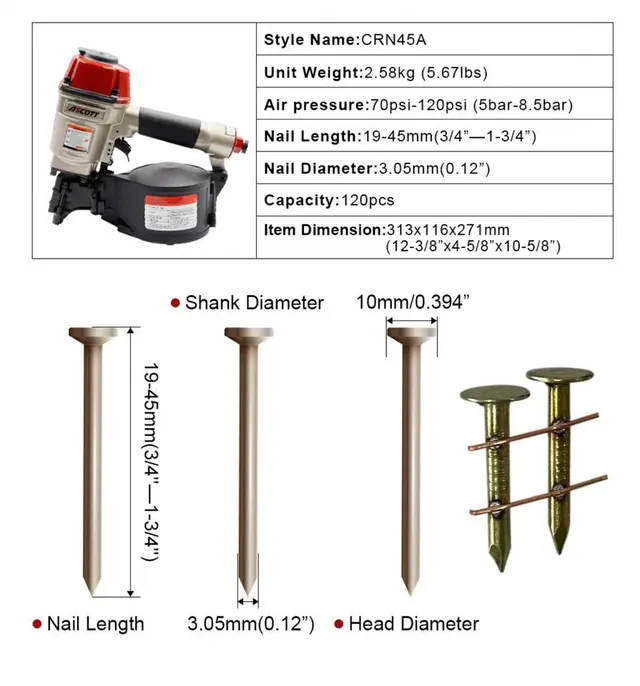

Specifications
| Model | CRN45A |
|---|---|
| Weight | 2.58 kgs (5.67 lbs) |
| Dimensions | 313 x 116 x 271 mm |
| Load Capacity | 120 nails |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |
| Nail Length | 19 mm - 45 mm (3/4" - 1-3/4") |
| Shank Diameter | 3.05 mm (0.120") |
| Head Diameter | 10.50 mm (0.413") |
| Fastener Type | 15° wire welded coil roofing nails |
Product information
Advantages
- Tool free adjustable depth control.
- Powerful tool with comfortable rubber grip.
- Adjustable exhaustor direction.
- Lightweight die-casting body prevents hand from fatigue during long time operation.
- Adjust knob for either sequential or contact trip fire.
Applications
- Fastening asphalt and fiberglass shingles.
- Fastening lath wire on plywood.
- Siding installation and wooden box assembly.

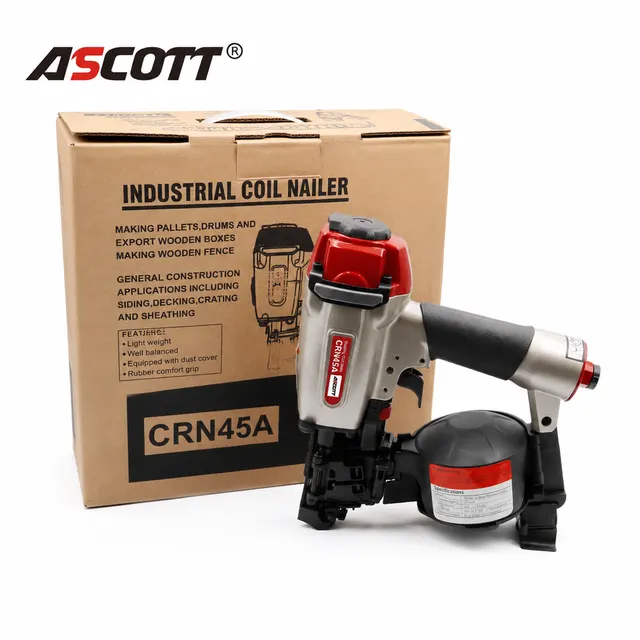

Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CRN45A Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
