CN57 · Coil Nailers
Coil Nailers

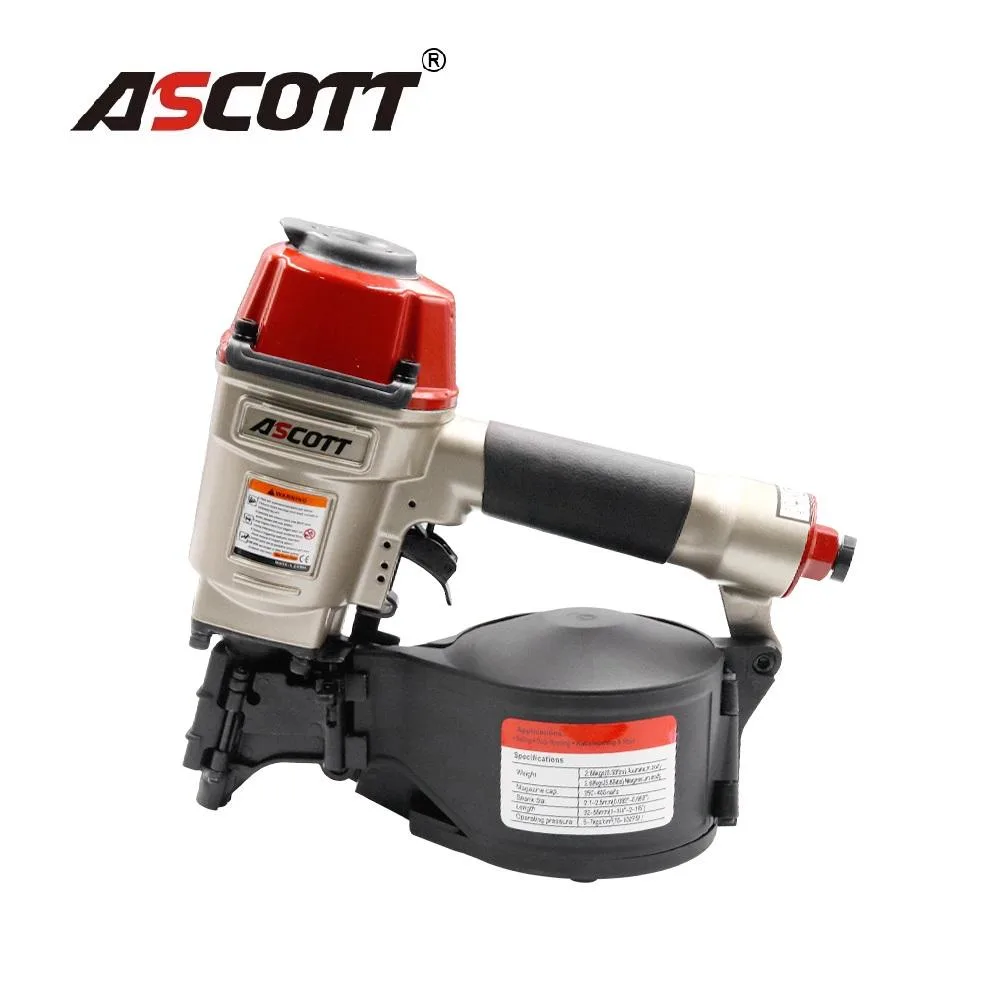

CN57 Coil Nailer
Industrial 25-57mm Siding Coil Nailer for Pallet Repair and Crating
MODELCN57
Body MaterialAluminum Body
Weight2.68 kgs (5.91 lbs)
Dimensions270 x 131 x 283 mm
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

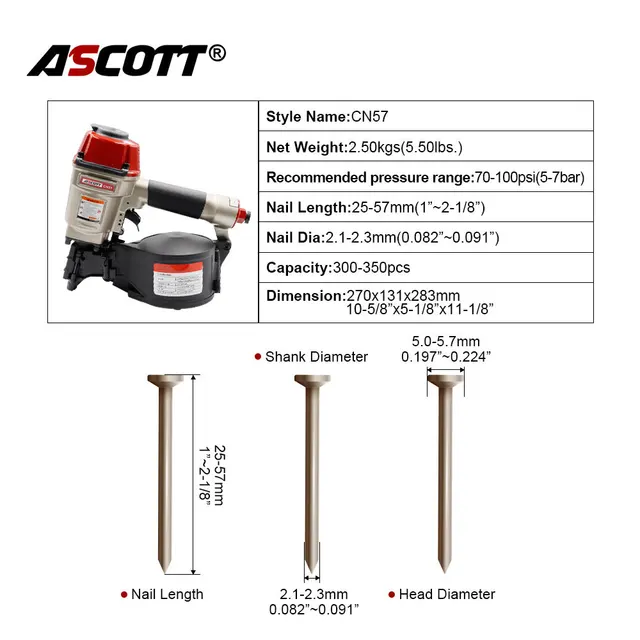

Specifications
| Model | CN57 |
|---|---|
| Body Material | Aluminum Body |
| Weight | 2.68 kgs (5.91 lbs) |
| Dimensions | 270 x 131 x 283 mm |
| Load Capacity | 300 - 350 nails |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |
| Nail Length | 25 mm - 57 mm (1" - 2-1/4") |
| Shank Diameter | 2.1 mm - 2.3 mm (0.083" - 0.091") |
| Head Diameter | 5.0 mm - 5.7 mm (0.197" - 0.224") |
| Fastener Type | 15° Flat wire welded coil nails |
Product information

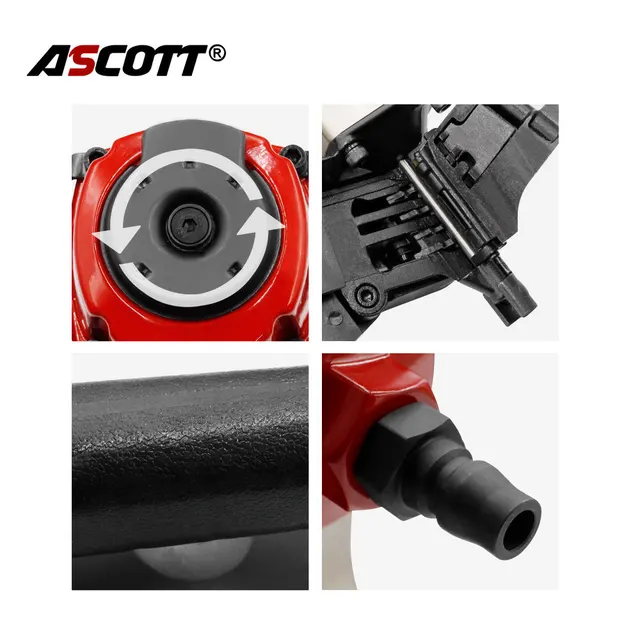

Advantages
- Powerful and durable aluminum housing & cylinder cap.
- Direction adjustable air deflector.
- Hardened nylon nail magazine.
- Light weight with comfortable rubber grip.
- Big load capacity.
Applications
- Assembly and repair of pallets, drums, export wooden boxes.
- Wooden fencing.
- Crating.
- General construction applications including: siding, decking, and sheathing.
Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN57 Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
LET’S TALK ABOUT CN57
Ready to discuss
your requirements?
Send a focused inquiry for this model, or add other products to your inquiry list.
