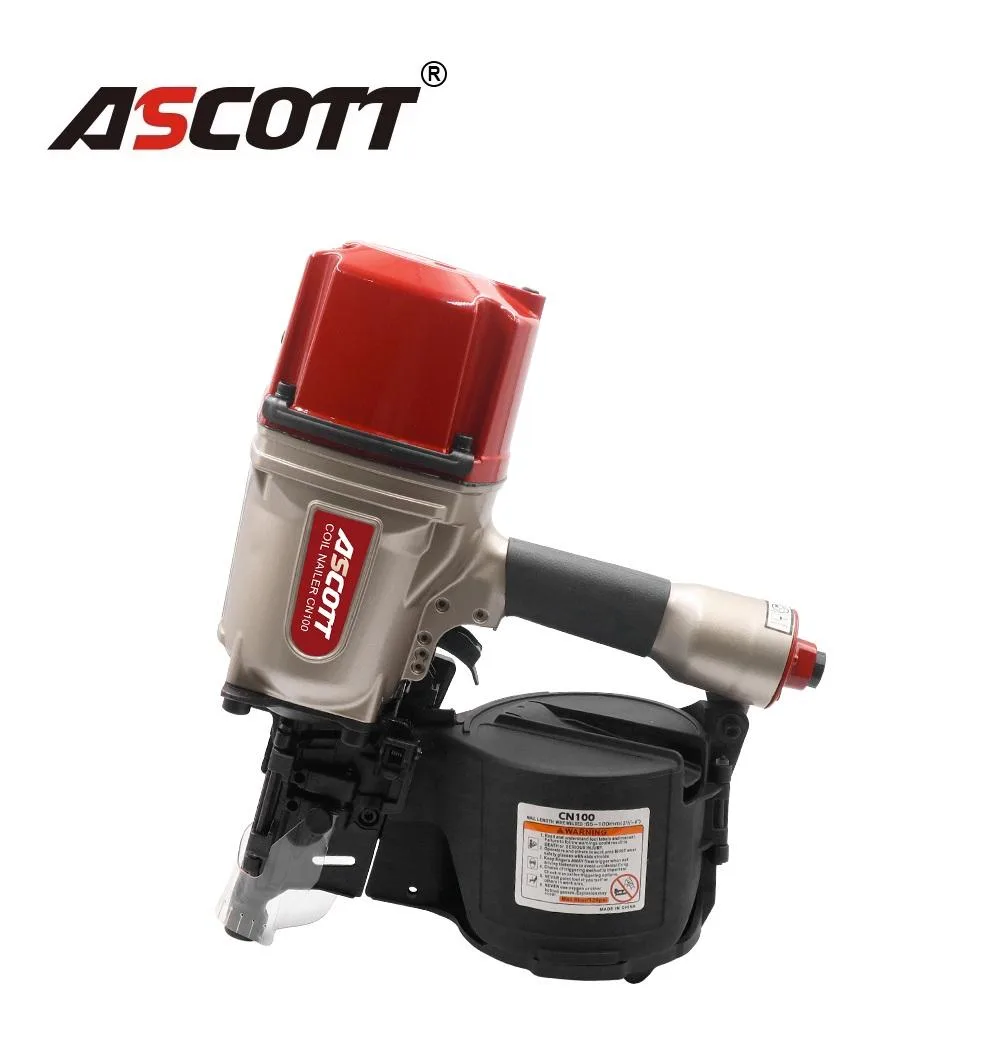

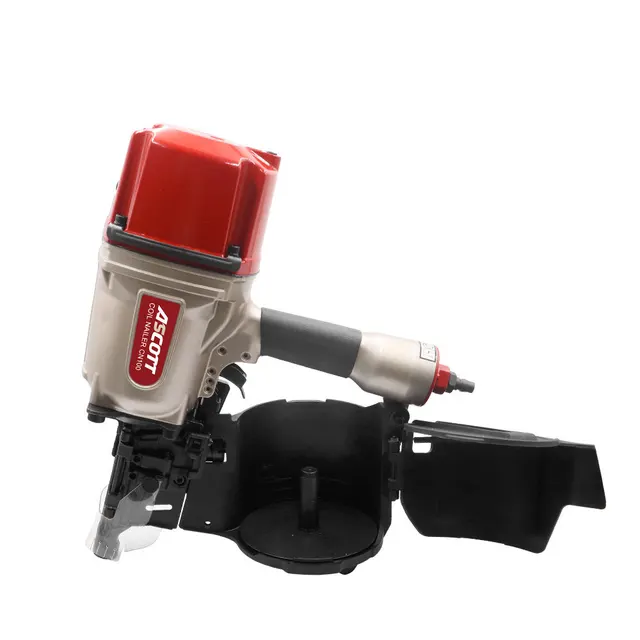

CN100 Coil Nailer
Heavy-Duty 4-Inch Pallet Coil Nailer for Structural Framing and Decking
MODELCN100
Body MaterialAluminum Body / Magnesium Body
Weight5.35 kgs (AL) / 5.11 kgs (MG)
Dimensions417 x 156 x 336 mm
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

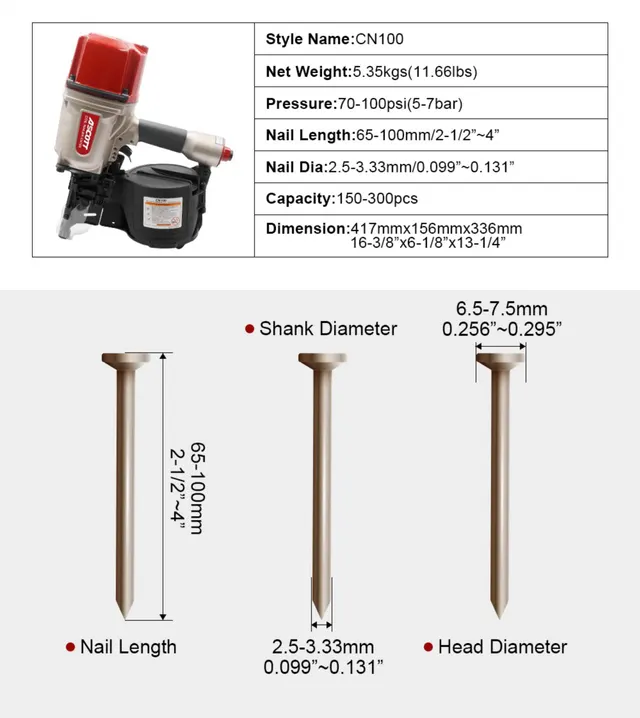

Specifications
| Model | CN100 |
|---|---|
| Body Material | Aluminum Body / Magnesium Body |
| Weight | 5.35 kgs (AL) / 5.11 kgs (MG) |
| Dimensions | 417 x 156 x 336 mm |
| Load Capacity | 150 - 300 nails |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |
| Nail Length | 65 mm - 100 mm (2-1/2" - 4") |
| Shank Diameter | 2.5 mm - 3.33 mm (0.099" - 0.131") |
| Head Diameter | 6.5 mm - 7.5 mm (0.256" - 0.295") |
| Fastener Type | 15° Flat wire welded coil nails |
Product information
Advantages
- Most powerful tool in its class, able to countersink nails into hard oak pallet.
- Durable aluminum frame and cylinder cap.
- Well balanced when hung on balancer.
- Downwards directional exhaust.
- Built-in silencer to reduce noise level.
- Comfortable rubber grip.
- Big magazine allows extra nail capacity.
Applications
- Assembly and repair of pallets, drums, export wooden boxes;
- Wooden fencing;
- Crating;
- General construction applications including: siding, decking, and sheathing.
Packaging

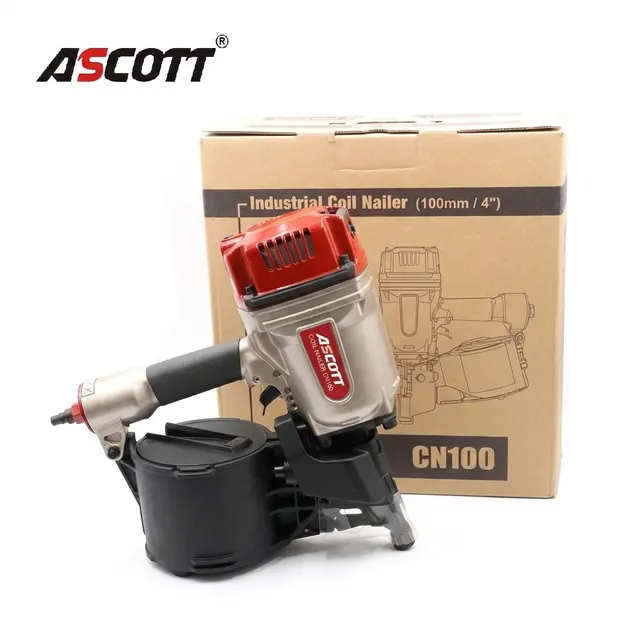

- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN100 Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
