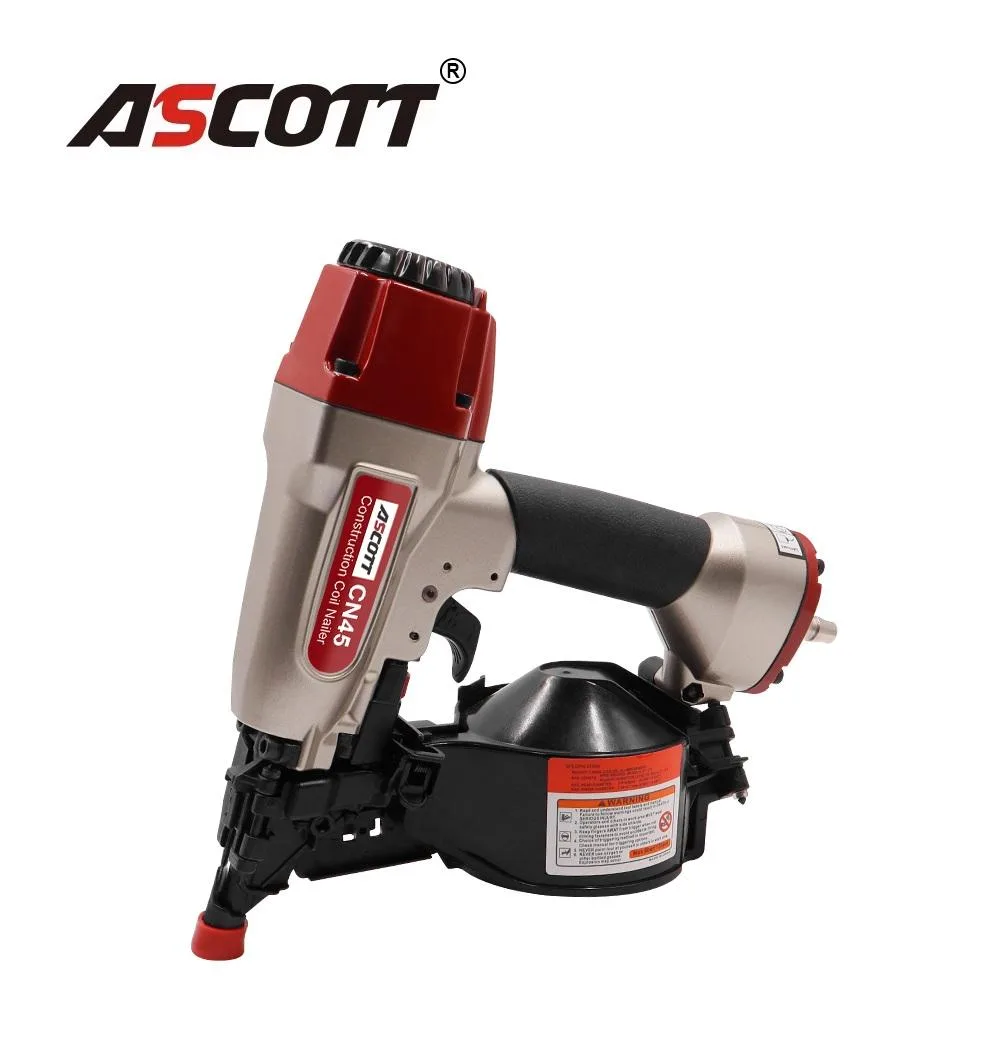

CN45 Coil Nailer
Lightweight 1-3/4" Conical & Flat Coil Nailer for Sub-flooring and Siding
MODELCN45
Body MaterialAluminum Body
Weight1.60 kgs (3.50 lbs)
Dimensions248 x 108 x 260 mm
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

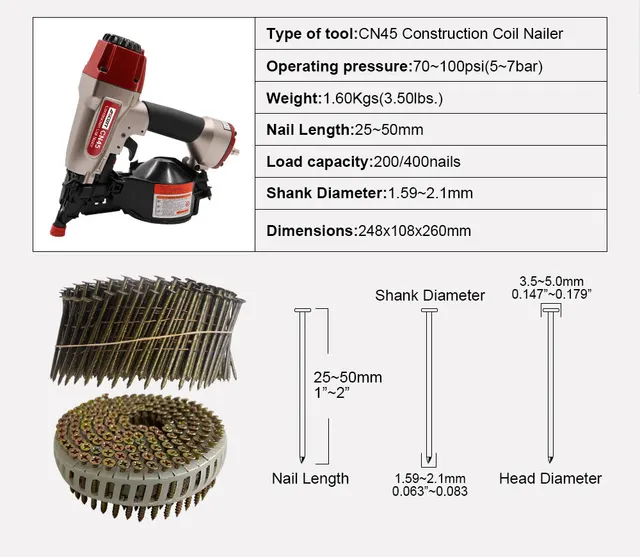

Specifications
| Model | CN45 |
|---|---|
| Body Material | Aluminum Body |
| Weight | 1.60 kgs (3.50 lbs) |
| Dimensions | 248 x 108 x 260 mm |
| Load Capacity | 400 nails (Conical) / 200 nails (Plastic) |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |
| Nail Length | 25 mm - 50 mm (1" - 2") |
| Shank Diameter | 1.59 mm - 2.1 mm (0.063" - 0.083") |
| Head Diameter | 3.5 mm - 5.0 mm (0.138" - 0.197") |
| Fastener Type | 15° Conical wire welded / Flat plastic sheet |
Product information
Advantages

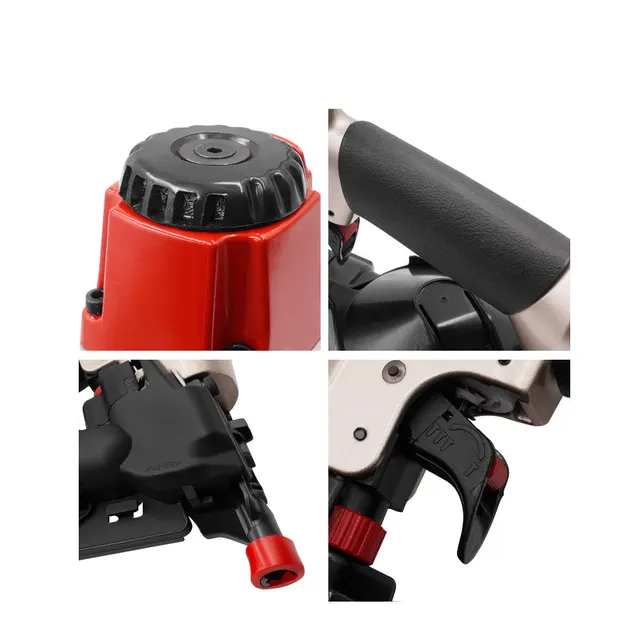

- Strong and light weight aluminumm body.
- Soft grip handle for comfort and control.
- Powerful, high-performance motor with adjustable exhaust diffuser.
- Drives both conical wire welded and plastic sheet collated nails without any adjustment.
- Adjustable firing mode and depth.
Applications
- Sub-flooring;
- Fencing;
- Wall sheathing and roof sheathing;
- Fastening gypsum board, decorative board and other interior boards;
Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN45 Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
