CN50G · Coil Nailers
Coil Nailers

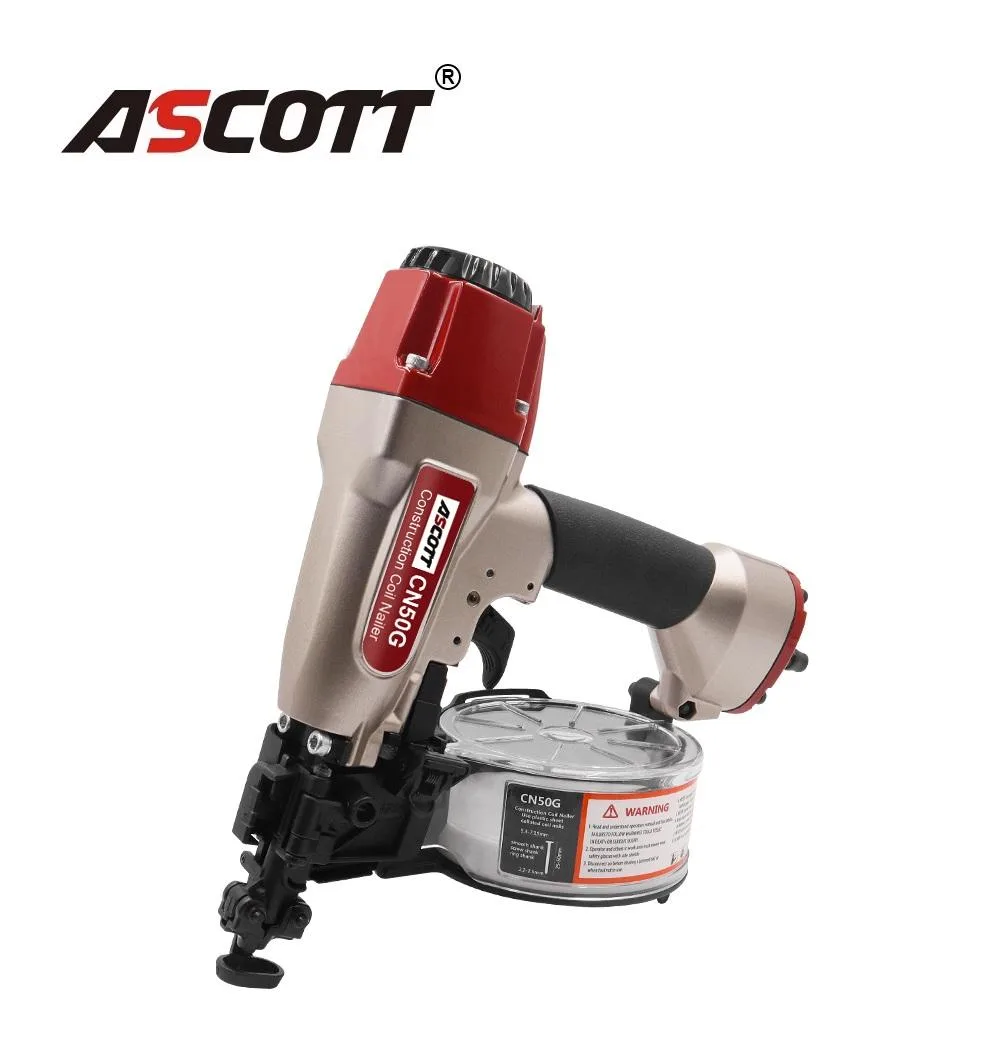

CN50G Coil Nailer
Compact Construction Coil Nailer for Gypsum Board and Metal Sheet Roofs
MODELCN50G
Body MaterialAluminum Body
Weight1.75 kgs (3.86 lbs)
Dimensions299 x 133 x 260 mm
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

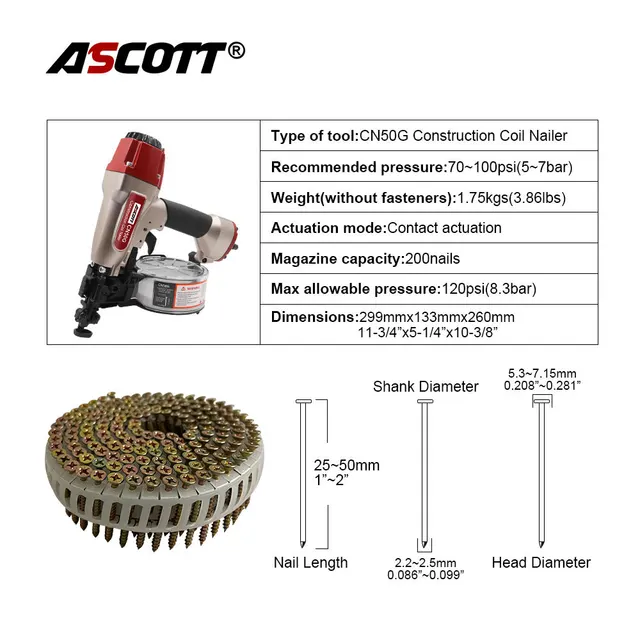

Specifications
| Model | CN50G |
|---|---|
| Body Material | Aluminum Body |
| Weight | 1.75 kgs (3.86 lbs) |
| Dimensions | 299 x 133 x 260 mm |
| Load Capacity | 200 nails |
| Operating Pressure | 70 - 100 psi (5 - 7 bar) |
| Nail Length | 25 mm - 50 mm (1" - 2") |
| Shank Diameter | 2.2 mm - 2.5 mm (0.086" - 0.099") |
| Head Diameter | 5.3 mm - 7.15 mm (0.208" - 0.281") |
| Fastener Type | 15° Flat plastic sheet collated nails |
Product information
Advantages
- Light weight with small size for easy operation.
- Adjustable safety for controllable shot depth.
- Special nose design for nails straight shotting.
Applications
- Fastening gypsum board and other interior boards.
- Metal connector for metal sheet roof.
Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN50G Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
