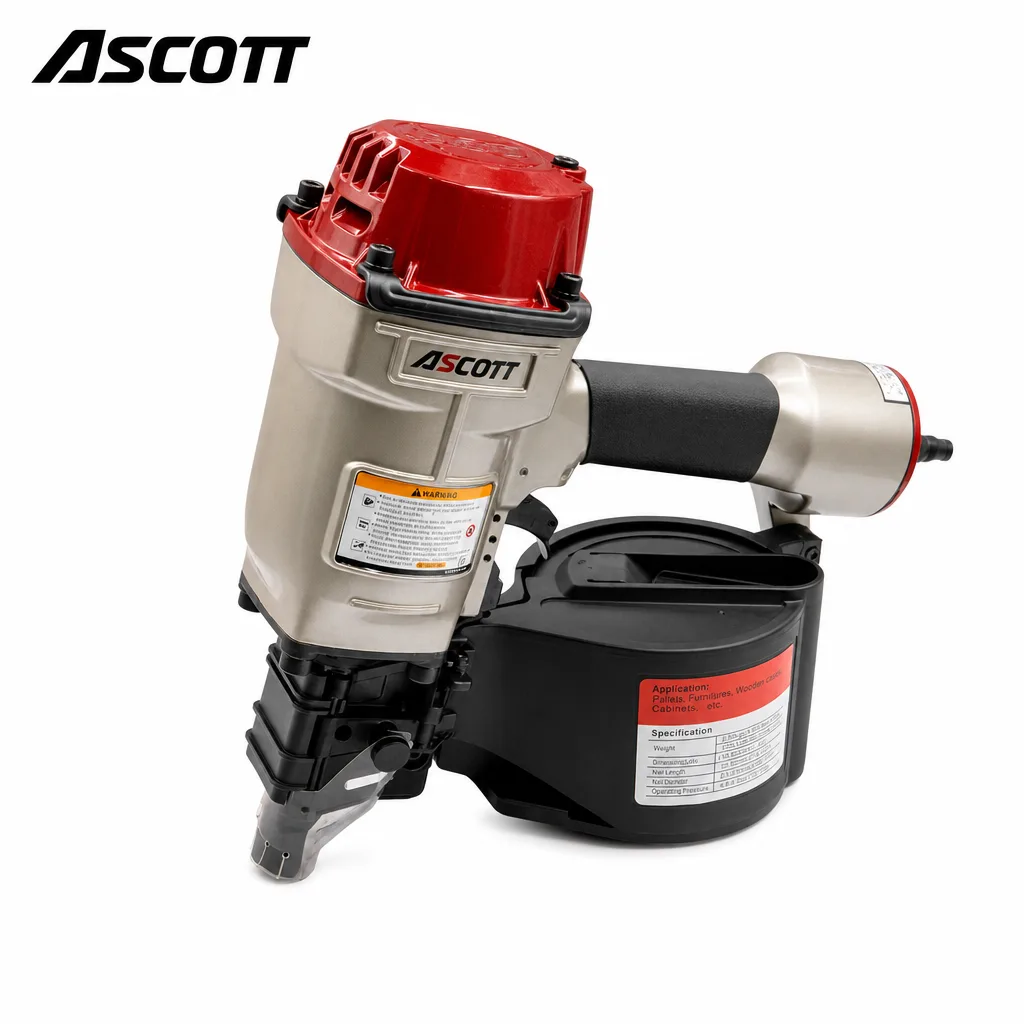

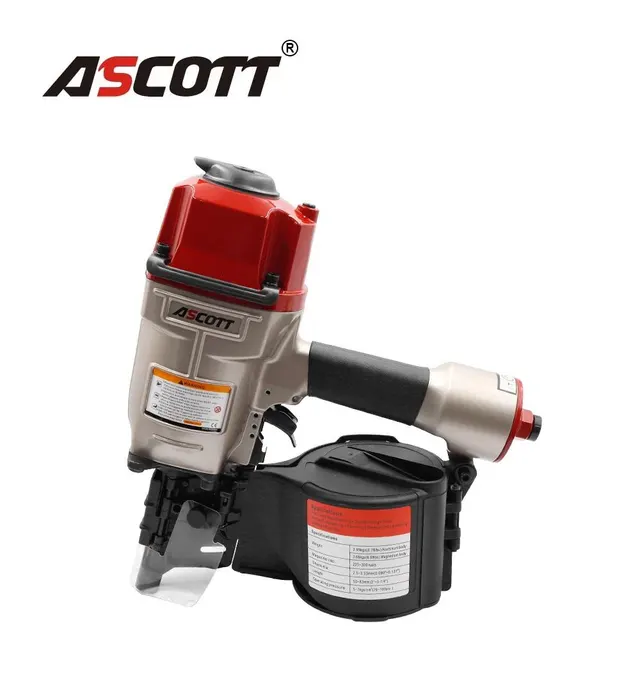

CN80 Coil Nailer
Professional 3-1/4" Industrial Coil Nailer for Export Wooden Box Assembly
MODELCN80
Body MaterialAluminum Body
Weight3.98 kgs (8.78 lbs)
Dimensions362 x 132 x 307 mm
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

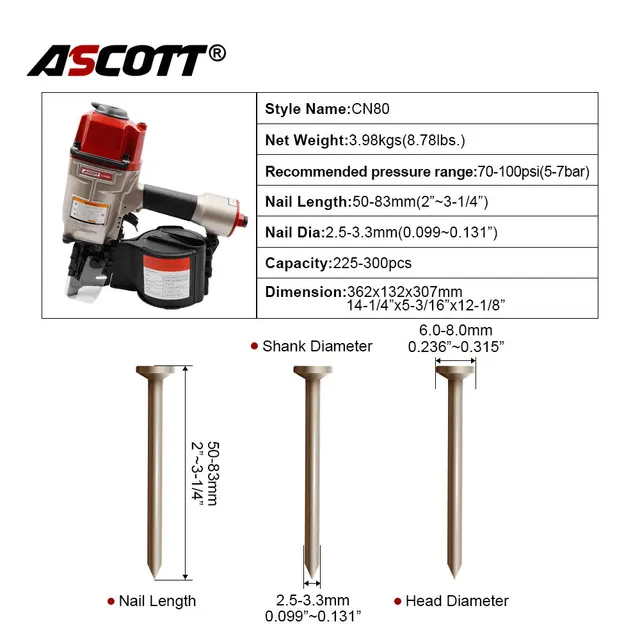

Specifications
| Model | CN80 |
|---|---|
| Body Material | Aluminum Body |
| Weight | 3.98 kgs (8.78 lbs) |
| Dimensions | 362 x 132 x 307 mm |
| Load Capacity | 225 - 300 nails |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |
| Nail Length | 50 mm - 83 mm (2" - 3-1/4") |
| Shank Diameter | 2.5 mm - 3.3 mm (0.099" - 0.131") |
| Head Diameter | 6.0 mm - 8.0 mm (0.236" - 0.315") |
| Fastener Type | 15° Flat wire welded coil nails |
Product information
Advantages
- Powerful and durable aluminum housing.
- Large capacity magazine.
- Heat treated nose with long service life.
- A safety guard helps shield the operator from debris during nailing.
- Light weight with comfortable rubber grip.
Applications
- Assembly and repair of pallets, drums, export wooden boxes.
- Wooden fencing.
- Crating.
- General construction applications including: siding, decking, and sheathing.
- Framing and subflooring.
Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN80 Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
