CN70PAL · Coil Nailers
Coil Nailers

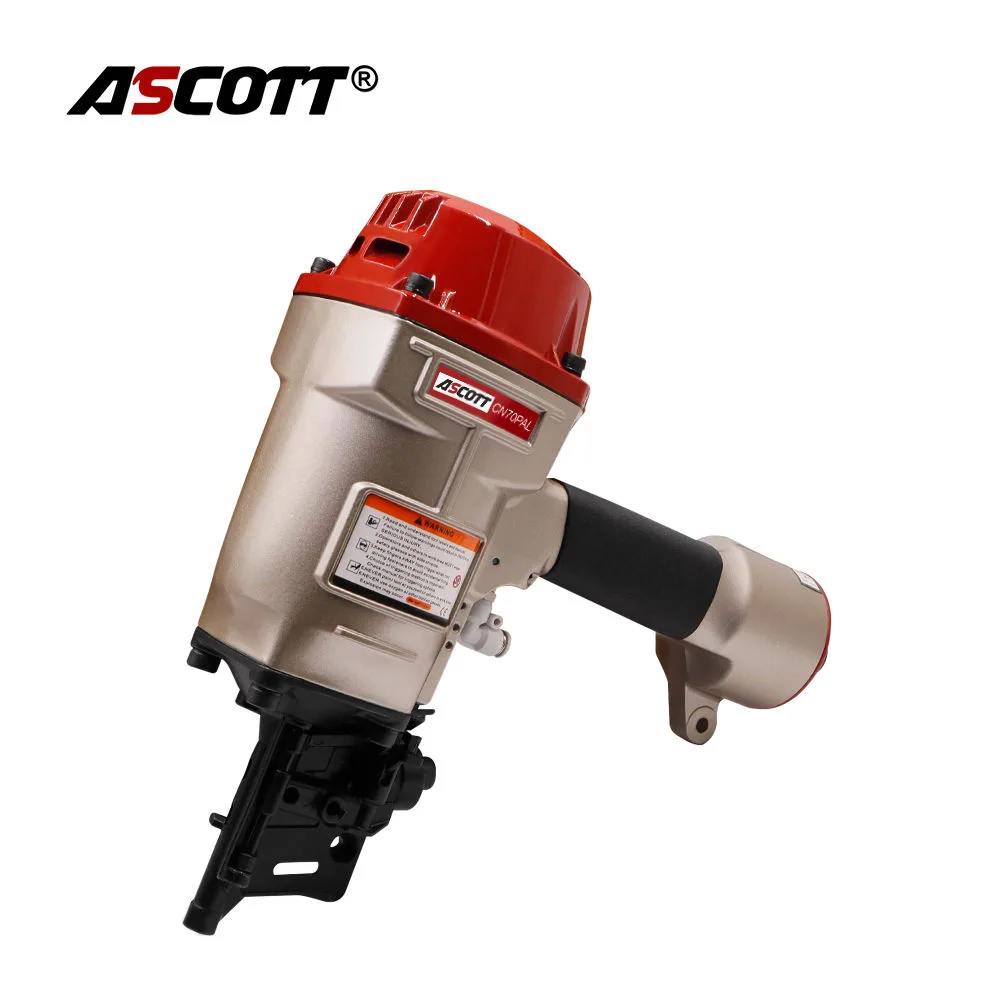

CN70PAL Coil Nailer
Automated Machine Coil Nailer with Automatic Trigger Valve for Pallet Lines
MODELCN70PAL
System TypeFor Automated Pallet Machine
Body MaterialAluminum Body (Frame & Cylinder Cap)
Weight3.02 kgs (6.66 lbs)
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

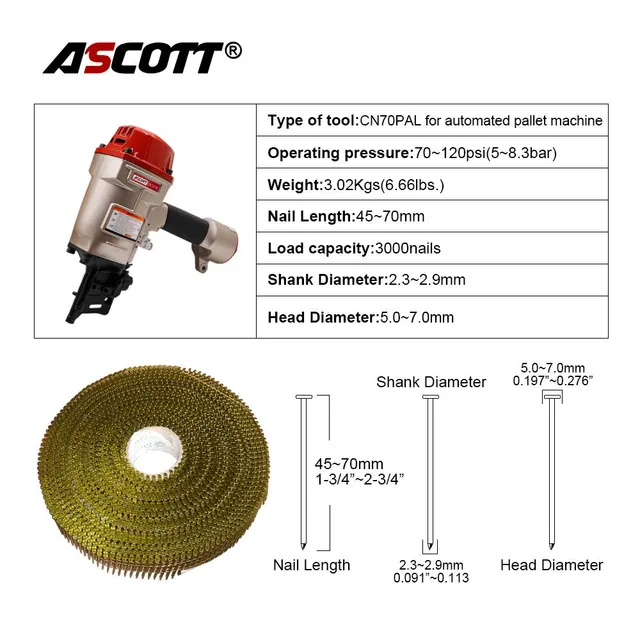

Specifications
| Model | CN70PAL |
|---|---|
| System Type | For Automated Pallet Machine |
| Body Material | Aluminum Body (Frame & Cylinder Cap) |
| Weight | 3.02 kgs (6.66 lbs) |
| Load Capacity | 3000 pieces nails per coil available |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |
| Nail Length | 45 mm - 70 mm (1-3/4" - 2-3/4") |
| Shank Diameter | 2.3 mm - 2.9 mm (0.091" - 0.113") |
| Head Diameter | 5.0 mm - 7.0 mm (0.197" - 0.276") |
| Fastener Type | 15° Flat wire welded coil nails |
Product information

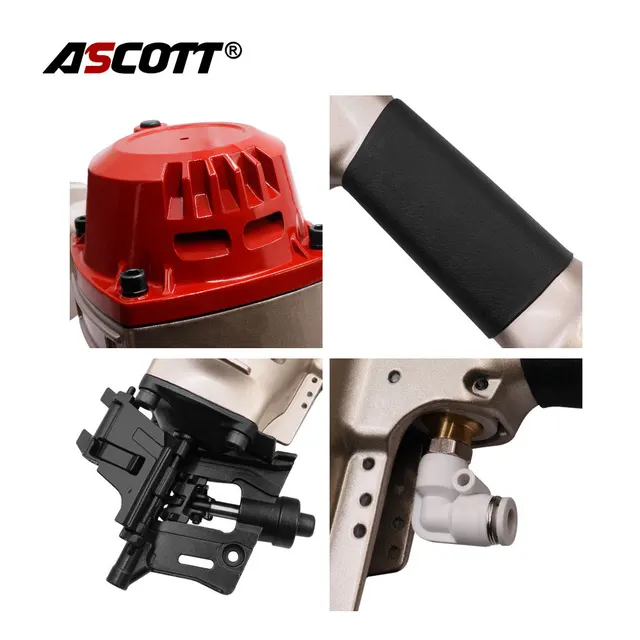

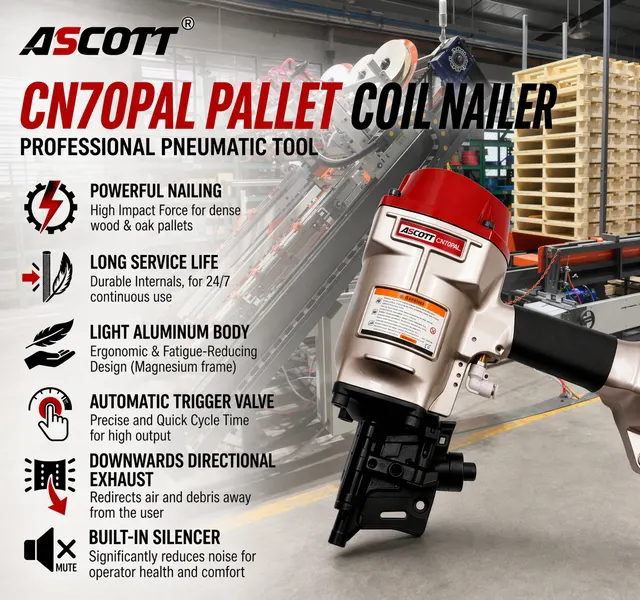

Advantages
- Most powerful tool good for countersink nails into Hard Oak pallet.
- Durable aluminum Frame & Cylinder Cap.
- Downwards directional exhaust.
- Built-in silencer to reduce noise level.
- Comfortable rubber grip.
Applications
- Working on automated pallet machine.
Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN70PAL Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
