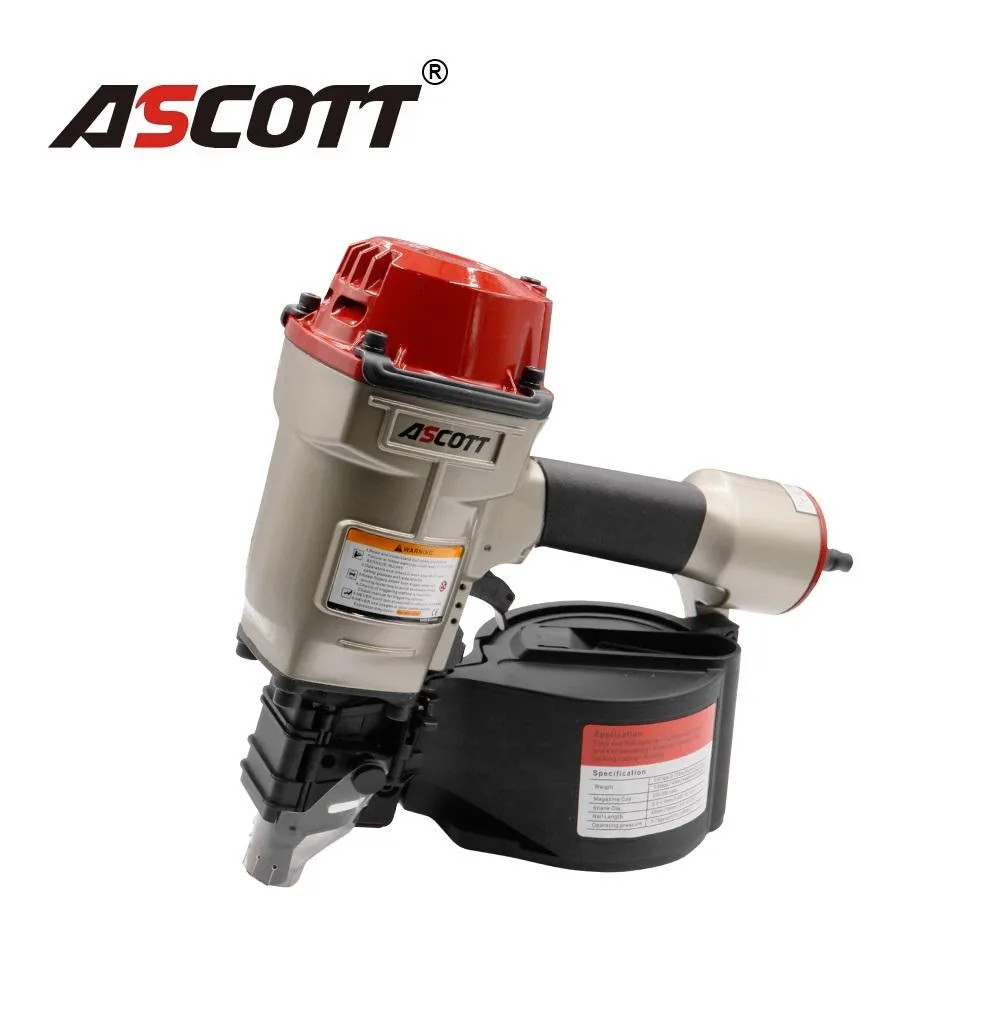

CN70 Coil Nailer
Heavy-Duty Pallet Coil Nailer with Safety Guard for Professional Crating
MODELCN70
Body MaterialAluminum Body
Weight3.67 kgs (8.07 lbs)
Dimensions315 x 128 x 306 mm
Send your quantity and destination. We’ll discuss availability, packaging and the information needed for your market.
THE TECHNICAL DETAILS

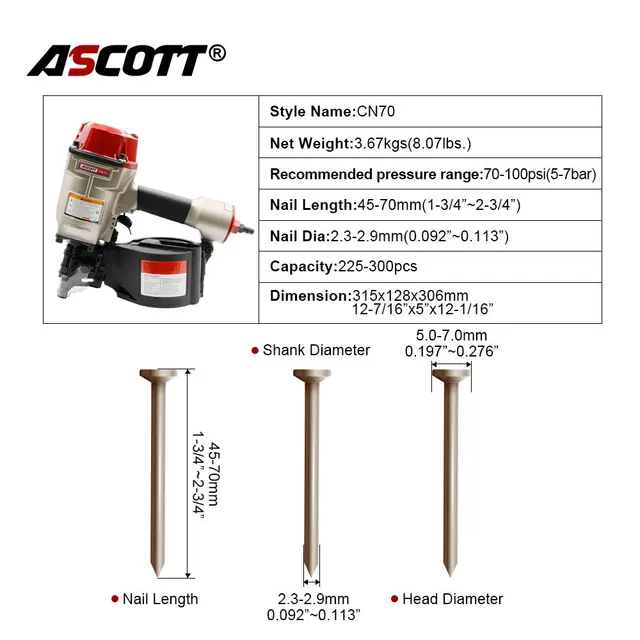

Specifications
| Model | CN70 |
|---|---|
| Body Material | Aluminum Body |
| Weight | 3.67 kgs (8.07 lbs) |
| Dimensions | 315 x 128 x 306 mm |
| Load Capacity | 225 - 300 nails |
| Operating Pressure | 70 - 120 psi (5 - 8.3 bar) |

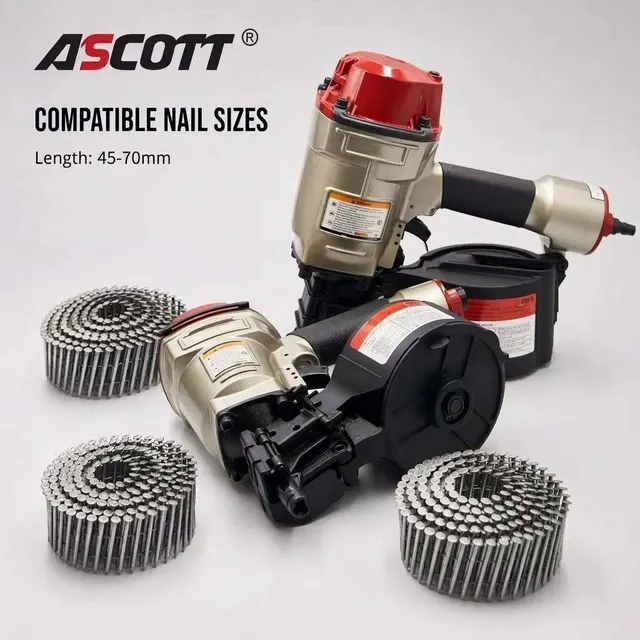

| Nail Length | 45 mm - 70 mm (1-3/4" - 2-3/4") |
| Shank Diameter | 2.3 mm - 2.9 mm (0.091" - 0.113") |
| Head Diameter | 5.0 mm - 7.0 mm (0.197" - 0.276") |
| Fastener Type | 15° Flat wire welded coil nails |
Product information
Advantages
- Powerful and durable aluminum housing.
- Large capacity magazine.
- Heat treated nose with long service life.
- A safety guard helps shield the operator from debris during nailing.
- Light weight with comfortable rubber grip.
Applications
- Assembly and repair of pallets, drums, export wooden boxes.
- Wooden fencing.
- Crating.
- General construction applications including: siding, decking, and sheathing.
- Framing and subflooring.
Packaging
- Box Type: Industrial-grade reinforced color box.
- Kit Contents:
- 1 × ASCOTT CN70 Tool
- 1 × Technical Operation Manual
- 1 × Repair Kit (Hex Wrenches included)
